70 SERIES – HEAVY DUTY STEEL

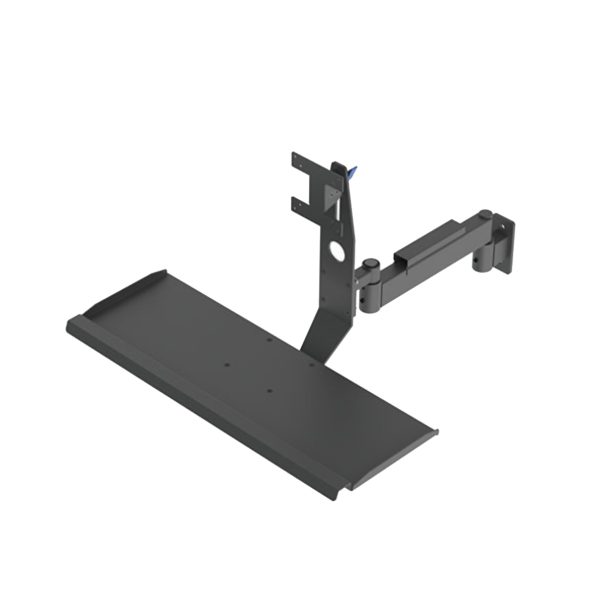

 INDUSTRIAL FLEX 180 MONITOR MOUNT W/ INTEGRATED KEYBOARD TRAY

Ideal for horizontal positioning of applications up to 100 lbs

$487.97

SKU: 70-8595-00 Category:

Description

  • Built rugged tough for industrial environments
  • Unit folds up compactly when not in use
  • Full range of monitor and keyboard angle adjustment
  • Monitor height and keyboard depth adjustable for an expanded or more compact set up
  • Included cable covers route and conceal up to two 1/2″ diameter cables or tubes
  • Adjustable arm rotation tension prevents drifting
  • Pre-Drilled for optional add on lever locks to lock arm rotation

MOUNT STYLE: Vertical Surface (wall, column, extruded aluminum profile, workstation upright, etc.)

CAPACITY: 30 lbs

MAX PROJECTION: 30.9″

STOWED PROFILE: 18.9″

HORIZONTAL ADJUSTMENT: Yes

VERTICAL ADJUSTMENT: No

MONITOR INTERFACE: VESA 75mm and 100mm

MONITOR TILT: Yes

MONITOR ROTATION: No

KEYBOARD TILT: Yes

Additional information

Weight 17 lbs
Dimensions 27 × 11 × 11 in

ADJUSTMENT METHOD SHEET (PDF FORMAT)

ADJUSTMENT METHOD SHEET

TECHNICAL DRAWING (PDF FORMAT)



3D CAD (STEP FORMAT)

COMING SOON
