70 SERIES – HEAVY DUTY STEEL

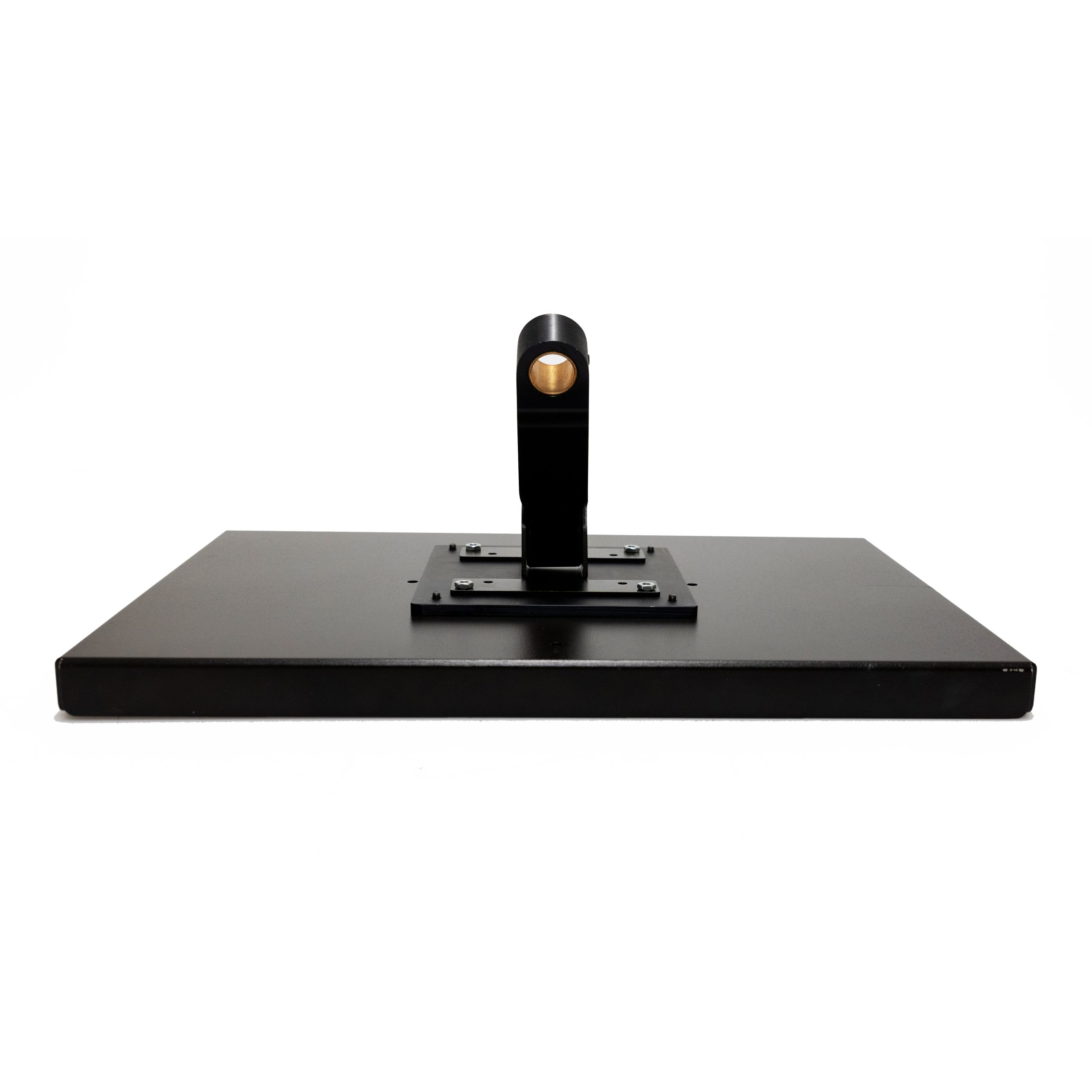

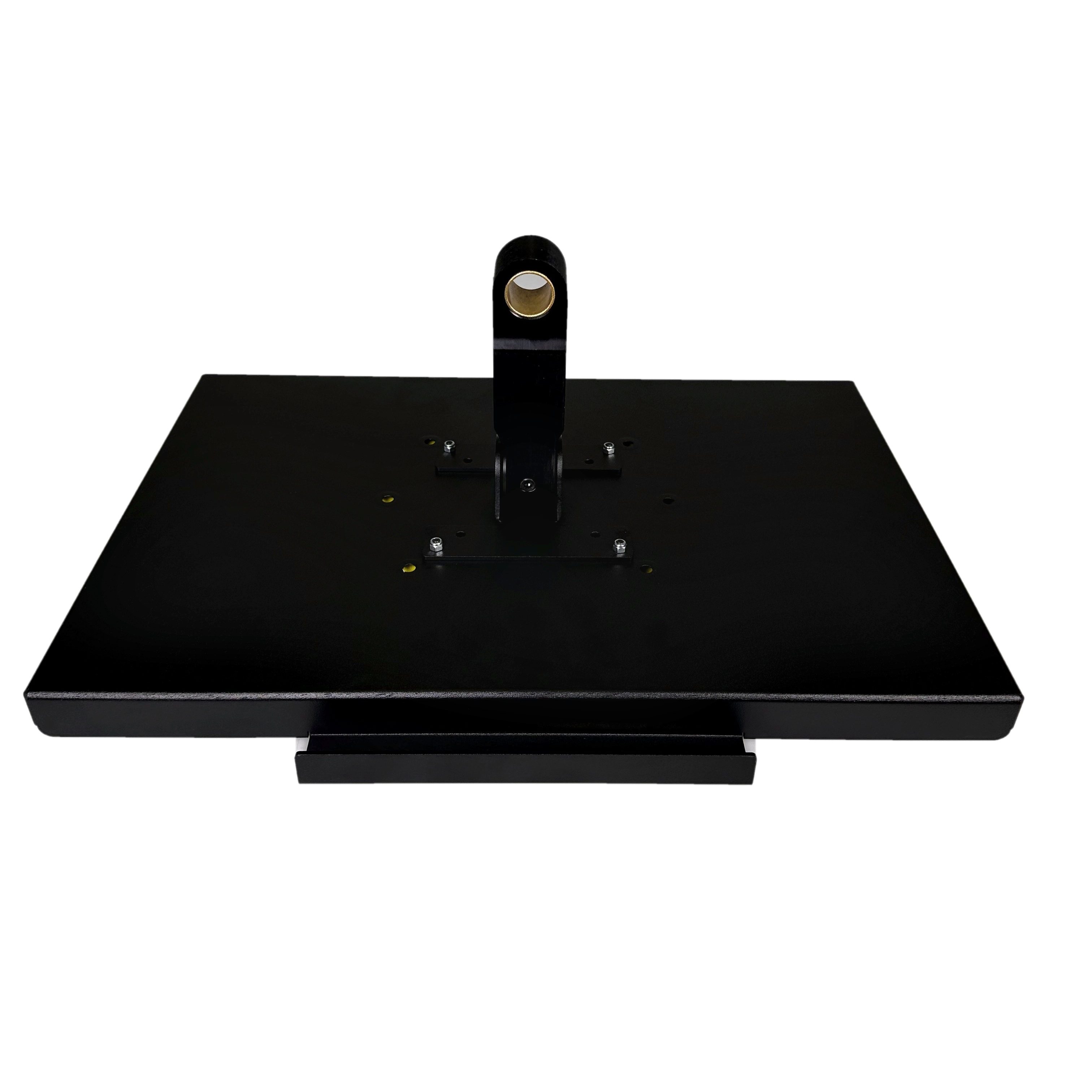

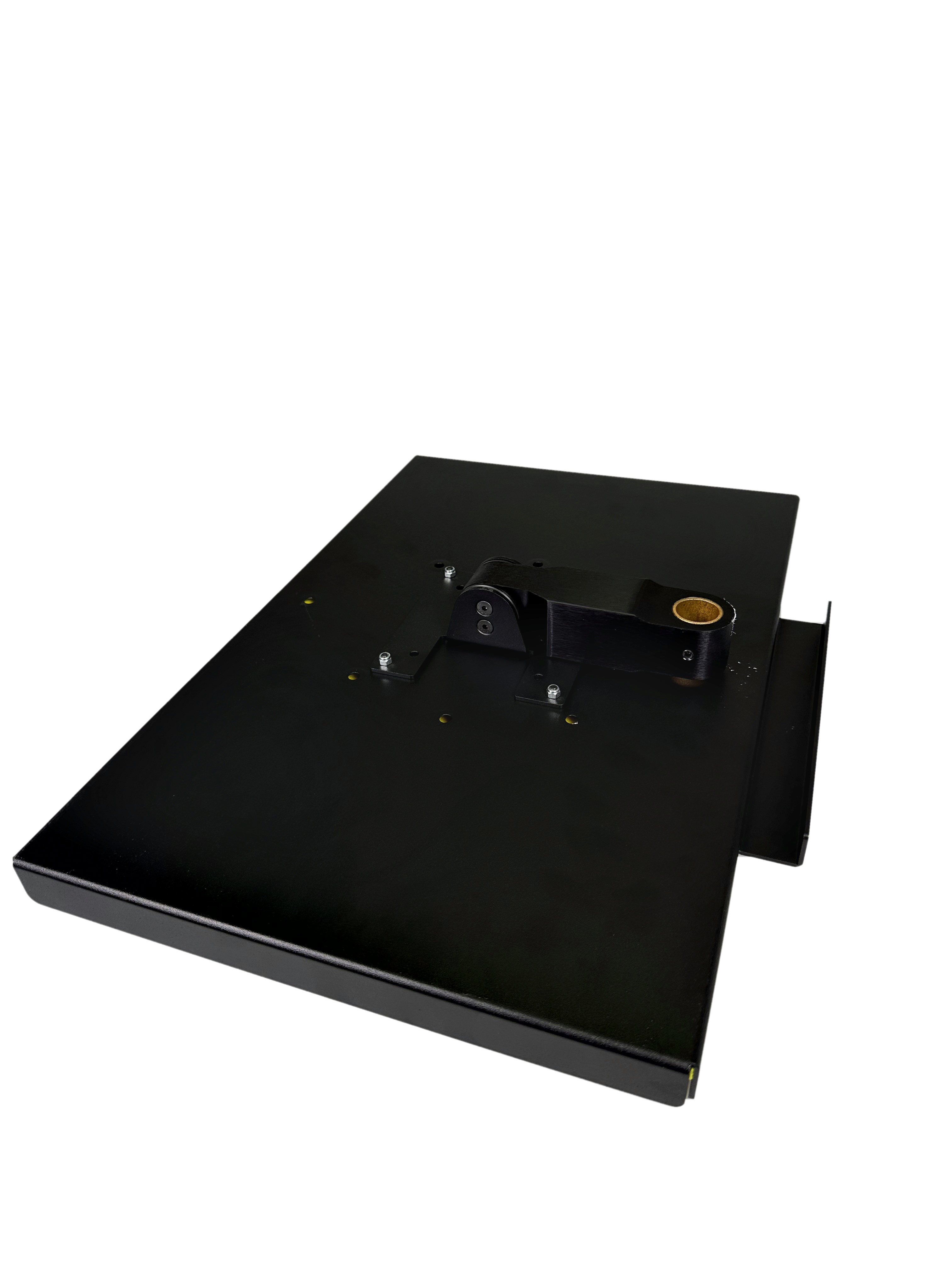

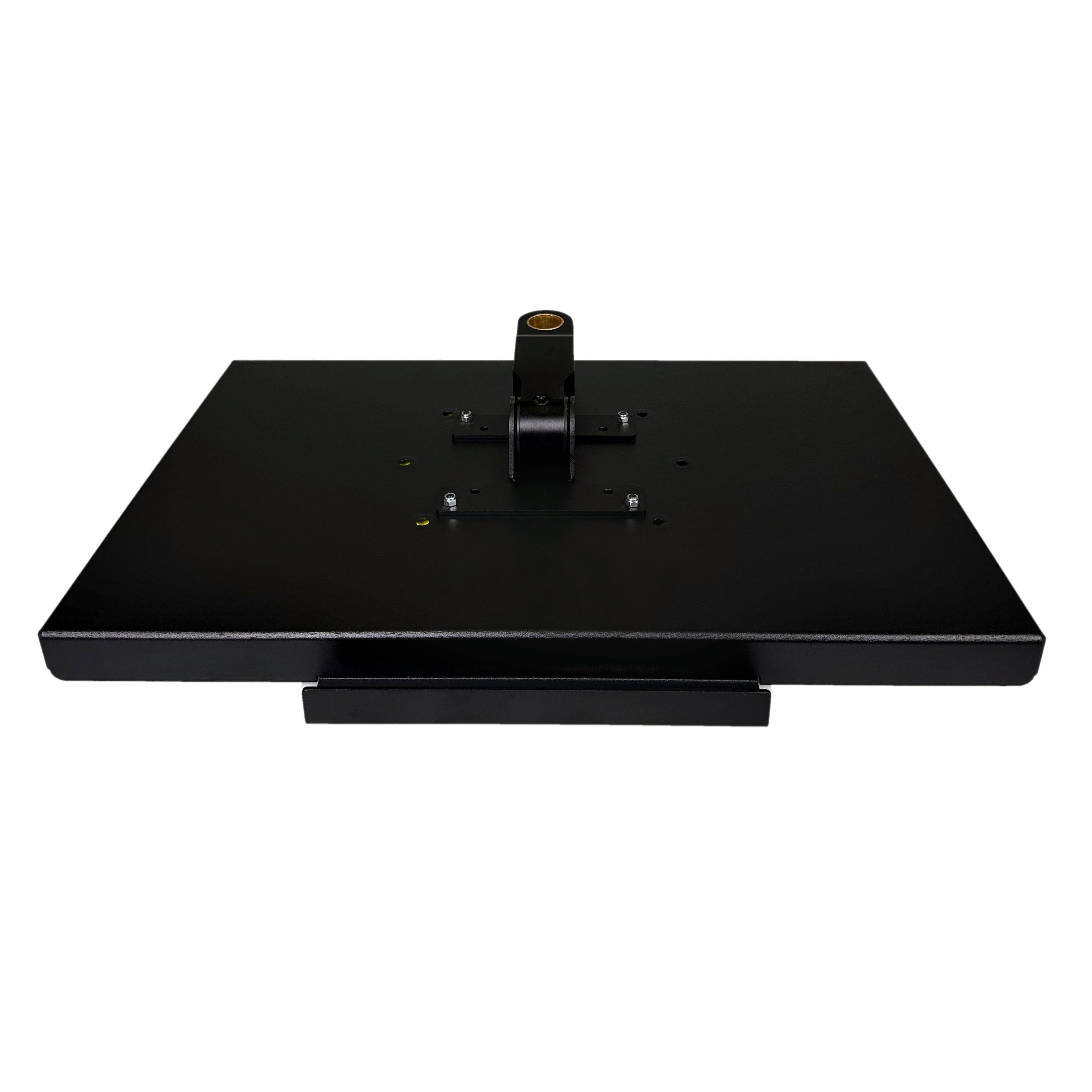

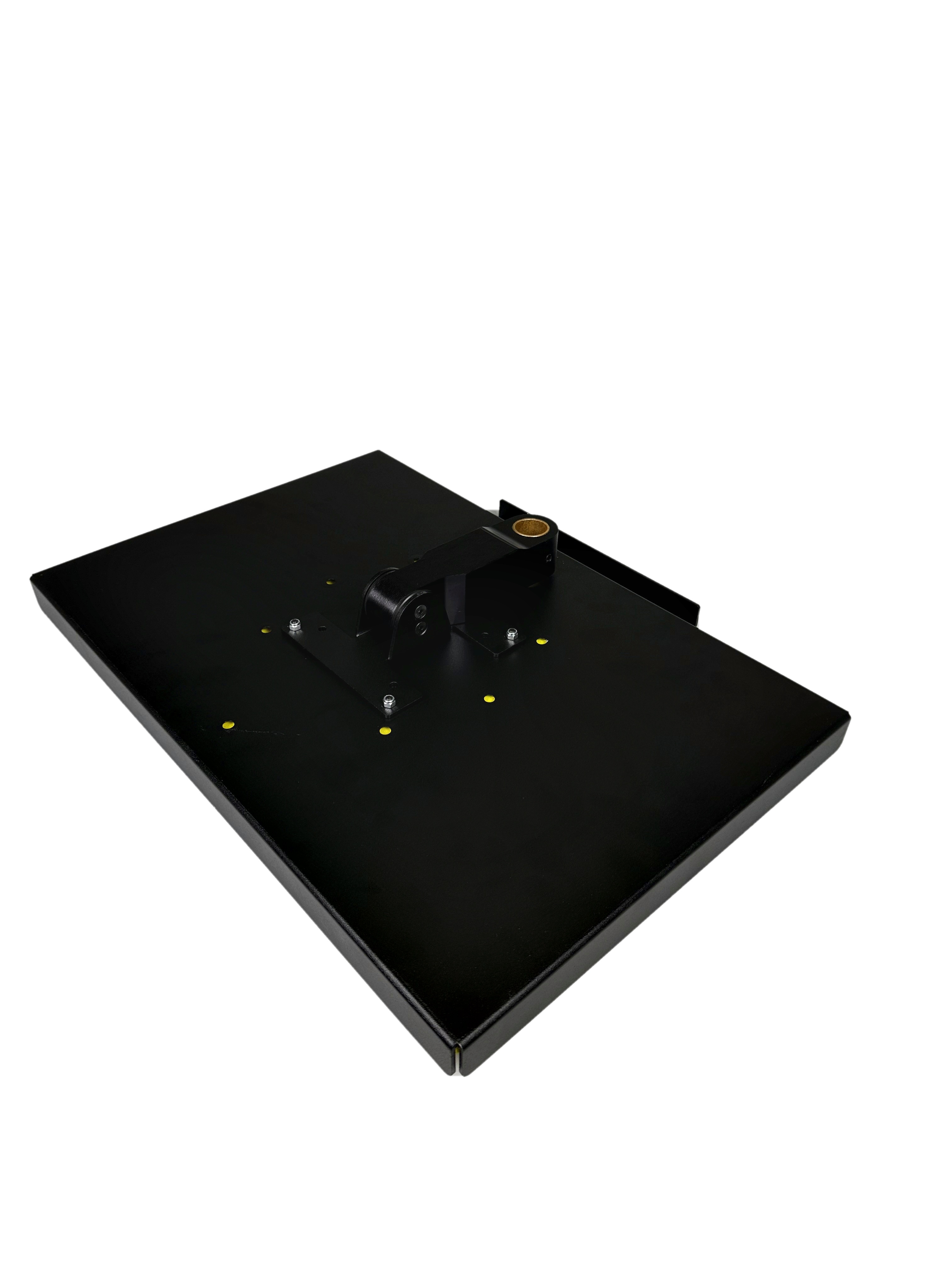

 18 X 12 INCH TILTING TOOL & PARTS TRAY W/ VESA TILTING MOUNT

$163.97

SKU: 70-0402-00 Categories: ,

Description

18×12 inch tilting tool & parts tray with VESA tilting mount.

NOTE: Tilting function only applicable with rigid arm systems. For mounting the 3.9 inch connector pin is required for installation of tilting tray.

DIMENSIONS
  • 18″ x 12″ interior space
  • 1″ tall 90 degree flanges (3/4″ with foam insert)
CAPACITY: 100 lbs.

MATERIALS
  • Aluminum Tray
  • Welded Steel Bottom Support
  • Oil Impregnated Bronze Bearing

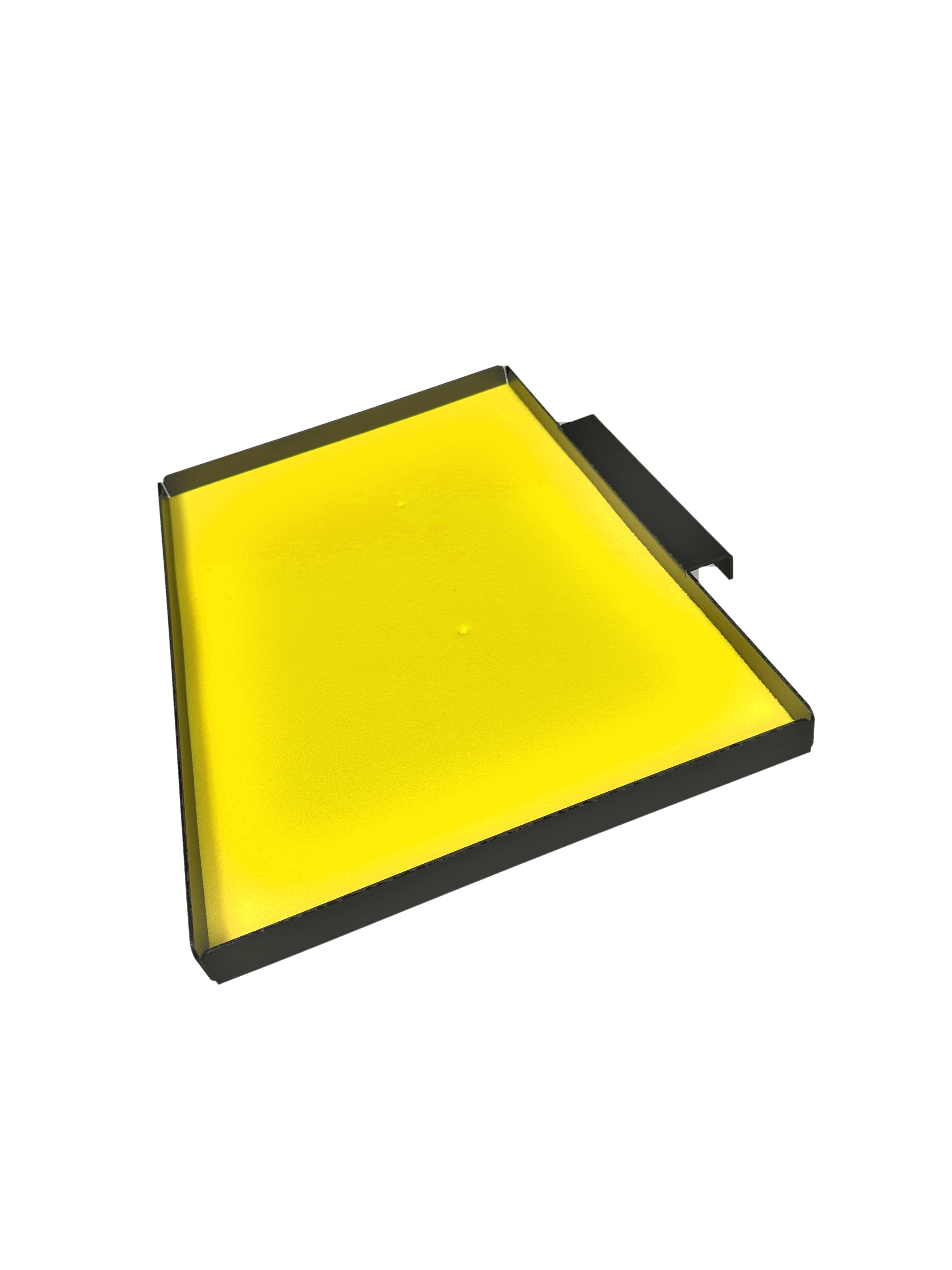

  • Chemical Resistant Yellow Polyethylene Foam Insert
FINISH: Black Powder Coat

ADJUSTABLE ROTATION TENSION: Yes




TECHNICAL DRAWING (PDF FORMAT)



3D CAD (STEP FORMAT)
